MOTORCYCLE - BRAKE DISCS - FMD0465
REAR
Stock available : May 2019
R Version

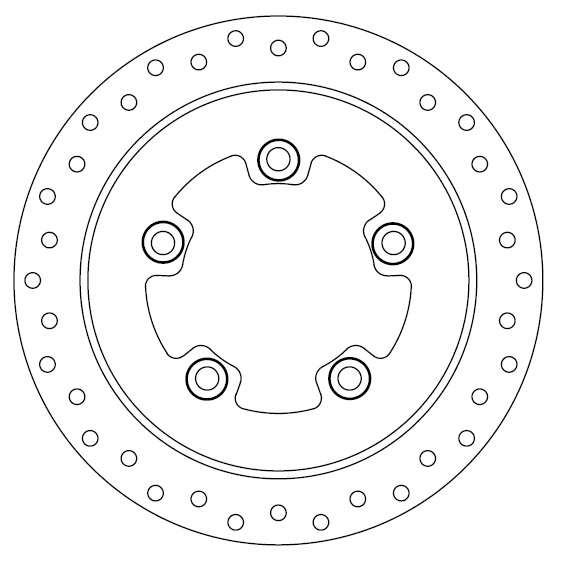

| DIMENSIONS | ||
|---|---|---|
| A | Outside Diam. mm | 240 |
| B | Inside Diam. mm | 87.5 |
| C | Thickness mm | 4 |
| D | Fixing Holes Number | 5 |
| E | Fixing Holes Diam. mm | 10.5 |
| F | Fixing Holes Centreline Diam. mm | 110 |
| MATERIAL AVAILABILITY | ||||||
| R | RF | RP | RPF | RX | MXR | RS |
 | ||||||
| COMPETITOR XREF | |
|---|---|
| NG | 1238 |
Applications
| KYMCO | |||||||||||
| MAKE | MODEL | CC | START | END | FRONT | NUM SET | SIDE | REAR | NUM SET | SIDE | |
|---|---|---|---|---|---|---|---|---|---|---|---|
| KYMCO | AGILITY R16 PLUS CBS | 125 | 2017 | > | 2019 | FMD0323 | FMD0465 | right | |||
| KYMCO | PEOPLE S 125 4T (4V) | 125 | 2017 | > | FMD0465 | right | |||||
| KYMCO | YAGER GTI | 125 | 2015 | > | 2016 | FMD0465 | right | ||||
| KYMCO | AGILITY i R16 PLUS ABS | 150 | 2018 | > | 2019 | FMD0323 | FMD0465 | right | |||
| KYMCO | PEOPLE S 150 4T (4V) | 150 | 2017 | > | FMD0465 | right | |||||
| KYMCO | YAGER GTI | 300 | 2015 | > | 2017 | FMD0465 | right | ||||
