MOTORCYCLE - CLUTCHES - FCS0480
| TYPES AVAILABILITY | ||
|---|---|---|
| CODE | DESCRIPTION | STATUS |

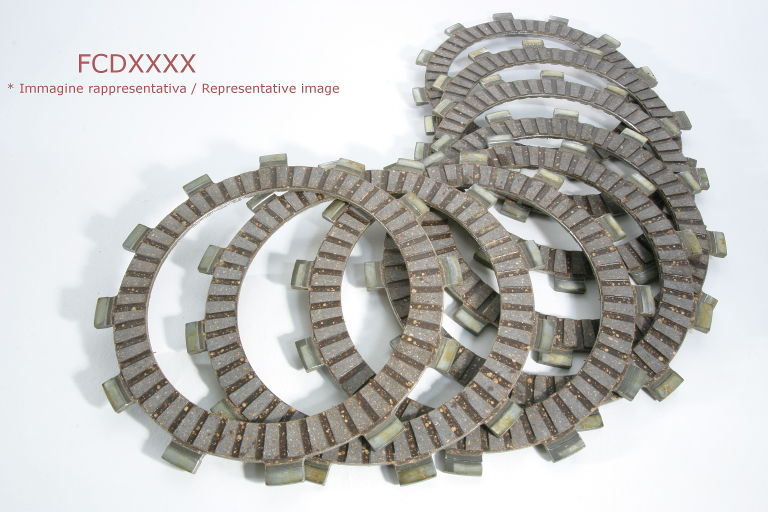

| FCD0480 | Standard clutch - friction plates kit |  |

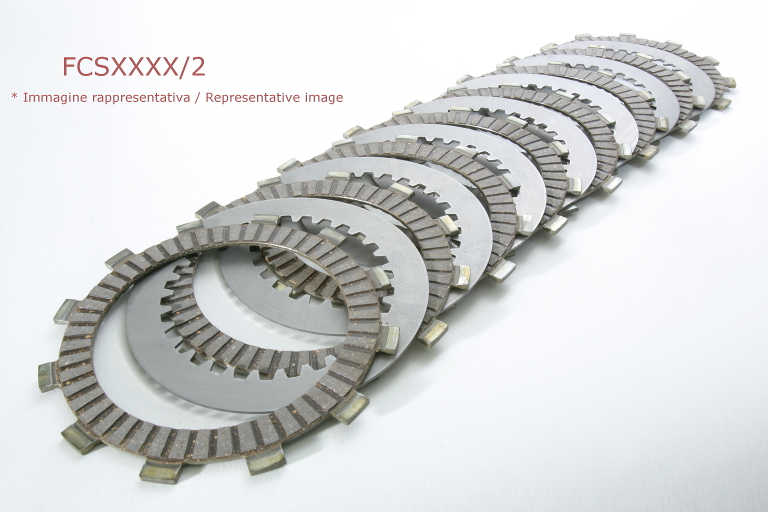

| FCS0480/2 | Standard clutch - friction & steel plates kit | |
| FCS0480/3 | High Performance clutch - friction & steel plates kit |  |
| CROSS REFERENCE | ||
|---|---|---|
| COMPETITOR | COMPETITOR CODE | FERODO CODE |
| NEWFREN | F2716 AC | FCS0480/2 |
| NEWFREN | F2716 SR | FCS0480/3 |
Std Applications
| KAWASAKI | ||||||||||
| MAKE | MODEL | CC | START | END | SPRINGS SET | STANDARD FRICTION KIT | HP FRICTION KIT | STANDARD COMPLETE SET | HP COMPLETE SET | |
|---|---|---|---|---|---|---|---|---|---|---|
| KAWASAKI | W 650 (EJ 650) | 650 | 1999 | > | 2006 | FSS0404 | FCD0480 | FCS0480/2 | FCS0480/3 | |
| KAWASAKI | VN 700 VULCAN | 700 | 1985 | > | 1994 | FSS0403 | FCD0480 | FCS0480/2 | FCS0480/3 | |
| KAWASAKI | GPX 750 | 750 | 1987 | > | 1989 | FSS0403 | FCD0480 | FCS0480/2 | FCS0480/3 | |
| KAWASAKI | VN 750 VULCAN | 750 | 1986 | > | 1994 | FSS0403 | FCD0480 | FCS0480/2 | FCS0480/3 | |
| KAWASAKI | VN 750 TWIN | 750 | 1988 | FSS0403 | FCD0480 | FCS0480/2 | FCS0480/3 | |||
| KAWASAKI | Z 750 | 750 | 1976 | FSS0403 | FCD0480 | FCS0480/2 | FCS0480/3 | |||
| KAWASAKI | Z 750 | 750 | 1977 | > | 1978 | FSS0404 | FCD0480 | FCS0480/2 | FCS0480/3 | |
| KAWASAKI | Z 750 Y1 LTD | 750 | 1982 | FSS0403 | FCD0480 | FCS0480/2 | FCS0480/3 | |||
| KAWASAKI | VN 800 | 800 | 1995 | > | 1999 | FSS0404 | FCD0480 | FCS0480/2 | FCS0480/3 | |
| KAWASAKI | VN 800 CLASSIC | 800 | 1996 | > | 2006 | FSS0404 | FCD0480 | FCS0480/2 | FCS0480/3 | |
| MAKE | MODEL | CC | START | END | SPRINGS SET | STANDARD FRICTION KIT | HP FRICTION KIT | STANDARD COMPLETE SET | HP COMPLETE SET | |
| KAWASAKI | VN 800 DRIFTER | 800 | 1999 | > | 2004 | FSS0403 | FCD0480 | FCS0480/2 | FCS0480/3 | |
| KAWASAKI | W 800 ABF (EJ 800) | 800 | 2011 | > | 2012 | FSS0404 | FCD0480 | FCS0480/2 | FCS0480/3 | |
| KAWASAKI | GPZ 900 R | 900 | 1984 | > | 1996 | FSS0404 | FCD0480 | FCS0480/2 | FCS0480/3 | |
| KAWASAKI | GPZ 900 R (ZX) | 900 | 1998 | FSS0404 | FCD0480 | FCS0480/2 | FCS0480/3 | |||
| KAWASAKI | GPZ 900 R (ZX) | 900 | 1999 | > | 2002 | FSS0404 | FCD0480 | FCS0480/2 | FCS0480/3 | |
| KAWASAKI | VN 900 CLASSIC | 900 | 2006 | > | 2012 | FSS0404 | FCD0480 | FCS0480/2 | FCS0480/3 | |
| KAWASAKI | VN 900 CUSTOM | 900 | 2007 | > | 2012 | FSS0404 | FCD0480 | FCS0480/2 | FCS0480/3 | |
| SUZUKI | ||||||||||
| MAKE | MODEL | CC | START | END | SPRINGS SET | STANDARD FRICTION KIT | HP FRICTION KIT | STANDARD COMPLETE SET | HP COMPLETE SET | |
| SUZUKI | RM 250 | 250 | 1996 | FSS0306 | FCD0480 | FCS0480/2 | FCS0480/3 | |||
| SUZUKI | RM 250 | 250 | 1997 | > | 2002 | FSS0215 | FCD0480 | FCS0480/2 | FCS0480/3 | |
