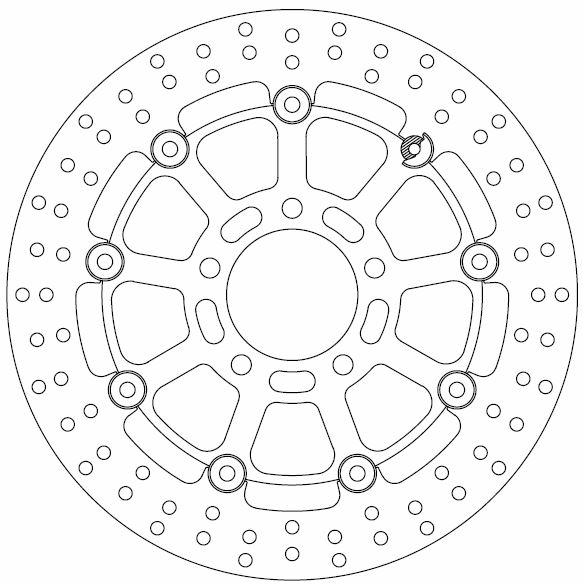

MOTORCYCLE - BRAKE DISCS - FMD0241
FRONT
RX Version
| DIMENSIONS | ||
|---|---|---|
| A | Outside Diam. mm | 300 |
| B | Inside Diam. mm | 69 |
| C | Thickness mm | 5 |
| D | Fixing Holes Number | 5 |
| E | Fixing Holes Diam. mm | 10.5 |
| F | Fixing Holes Centreline Diam. mm | 91 |
| MATERIAL AVAILABILITY | ||||||
| R | RF | RP | RPF | RX | MXR | RS |
 | ||||||
| COMPETITOR XREF | |
|---|---|
| BRAKING | WK067R |
| BRAKING | STX67 |
| BRAKING | WK067L |
| EBC | MD30089LS/RS |
| NEWFREN | DF5134 AF |
| NG | 790 |
| EQUIVALENT OE # | |
|---|---|
| OEM Suzuki | 59210 18G20 |
| OEM Suzuki | 59210 18G30 |
Applications
| SUZUKI | |||||||||||
| MAKE | MODEL | CC | START | END | FRONT | NUM SET | SIDE | REAR | NUM SET | SIDE | |
|---|---|---|---|---|---|---|---|---|---|---|---|
| SUZUKI | GSX R (Rad.cal) | 600 | 2004 | > | 2005 | FMD0241 | 2 | FMD0249 | |||
| SUZUKI | GSX R | 600 | 2004 | > | 2005 | FMD0241 | 2 | FMD0249 | |||
| SUZUKI | GSX R | 750 | 2004 | > | 2005 | FMD0241 | 2 | FMD0249 | |||
| SUZUKI | GSX R (Rad.cal) | 750 | 2004 | > | 2005 | FMD0241 | 2 | FMD0249 | |||
| SUZUKI | GSX R | 1000 | 2003 | > | 2004 | FMD0241 | 2 | FMD0249 | |||
