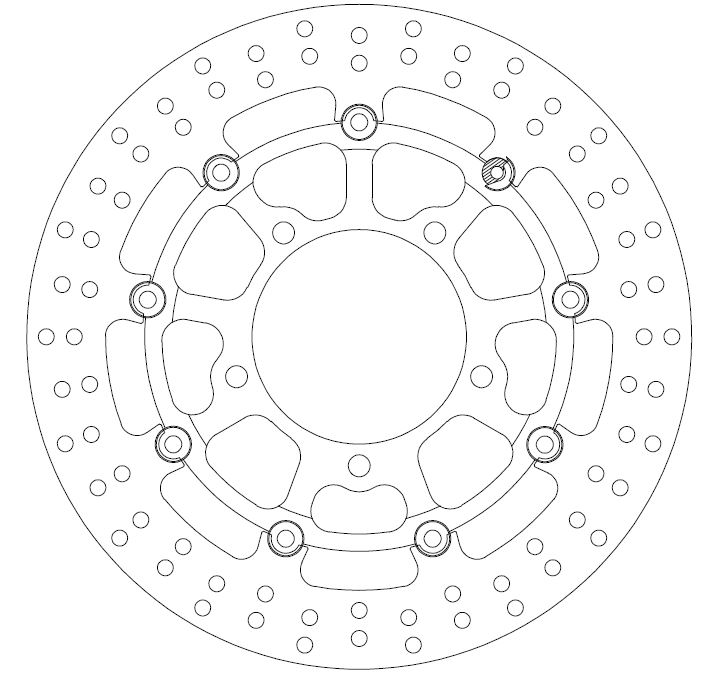

MOTORCYCLE - BRAKE DISCS - FMD0393
FRONT
RX Version
| DIMENSIONS | ||
|---|---|---|
| A | Outside Diam. mm | 310 |
| B | Inside Diam. mm | 100 |
| C | Thickness mm | 5 |
| D | Fixing Holes Number | 5 |
| E | Fixing Holes Diam. mm | 10.5 |
| F | Fixing Holes Centreline Diam. mm | 120 |
| MATERIAL AVAILABILITY | ||||||
| R | RF | RP | RPF | RX | MXR | RS |
 | ||||||
| COMPETITOR XREF | |
|---|---|
| BRAKING | STX76 |
| BRAKING | WK076L |
| BRAKING | WK076R |
| NEWFREN | DF5135 AF |
| NG | 1041 |
Applications
| SUZUKI | |||||||||||
| MAKE | MODEL | CC | START | END | FRONT | NUM SET | SIDE | REAR | NUM SET | SIDE | |
|---|---|---|---|---|---|---|---|---|---|---|---|
| SUZUKI | GSX R (Rad.cal) | 600 | 2006 | > | 2007 | FMD0393 | 2 | FMD0249 | |||
| SUZUKI | GSX R | 600 | 2006 | > | 2007 | FMD0393 | 2 | FMD0249 | |||
| SUZUKI | GSX R | 750 | 2006 | > | 2007 | FMD0393 | 2 | FMD0249 | |||
| SUZUKI | GSX R (Rad.cal) | 750 | 2006 | > | 2007 | FMD0393 | 2 | FMD0249 | |||
| SUZUKI | GSX R (Rad.cal) | 1000 | 2005 | > | 2008 | FMD0393 | 2 | FMD0249 | |||
| SUZUKI | GSX R | 1000 | 2005 | > | 2008 | FMD0393 | 2 | FMD0249 | |||
| SUZUKI | VZR INTRUDER M | 1800 | 2008 | > | 2012 | FMD0393 | 2 | ||||
