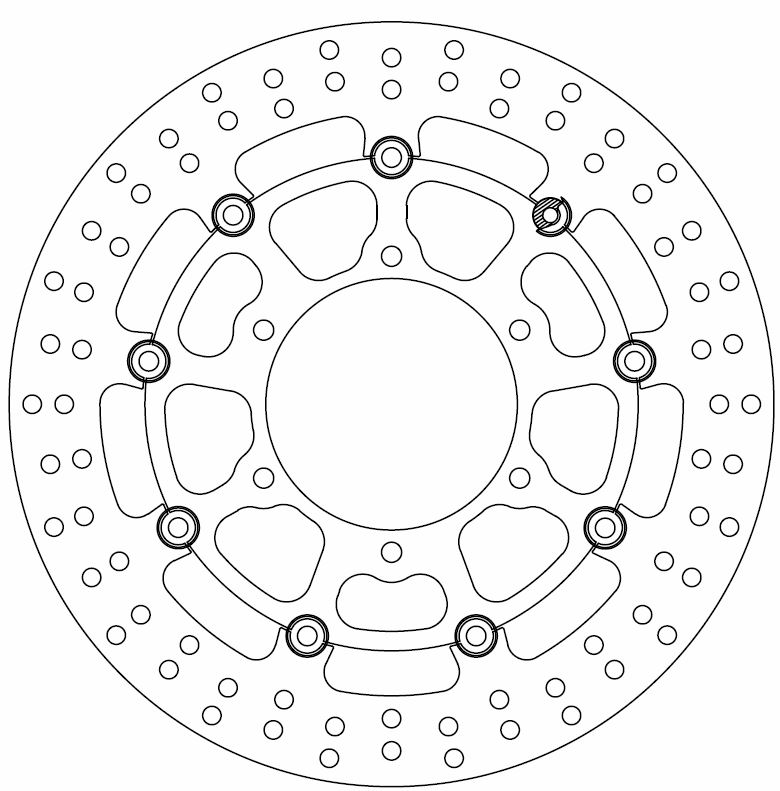

MOTORCYCLE - BRAKE DISCS - FMD0412

Choose Code:

FMD0412

FRONT

RX Version

DIMENSIONS
A Outside Diam. mm 310
B Inside Diam. mm 102
C Thickness mm 5
D Fixing Holes Number 6
E Fixing Holes Diam. mm 8.15
F Fixing Holes Centreline Diam. mm 120



MATERIAL AVAILABILITY
RRFRPRPFRXMXRRS

COMPETITOR XREF
BRAKINGBY701L
BRAKINGBY701R
BRAKINGWK101L
BRAKINGWK101R
BRAKINGSTX101
NEWFRENDF5278
NG1214
EQUIVALENT OE #
OEM Suzuki59210 37H01 000
Applications
SUZUKI
MAKE MODEL CC START   END FRONT NUM SET SIDE REAR NUM SET SIDE
SUZUKI GSX R 600 2008 > 2017 FMD0412 2 FMD0249
SUZUKI GSX R 750 2008 > 2017 FMD0412 2 FMD0249
SUZUKI GSX R 1000 2009 > 2015 FMD0412 2 FMD0249
SUZUKI GSX R ABS 1000 2016 > FMD0412 2 FMD0249
